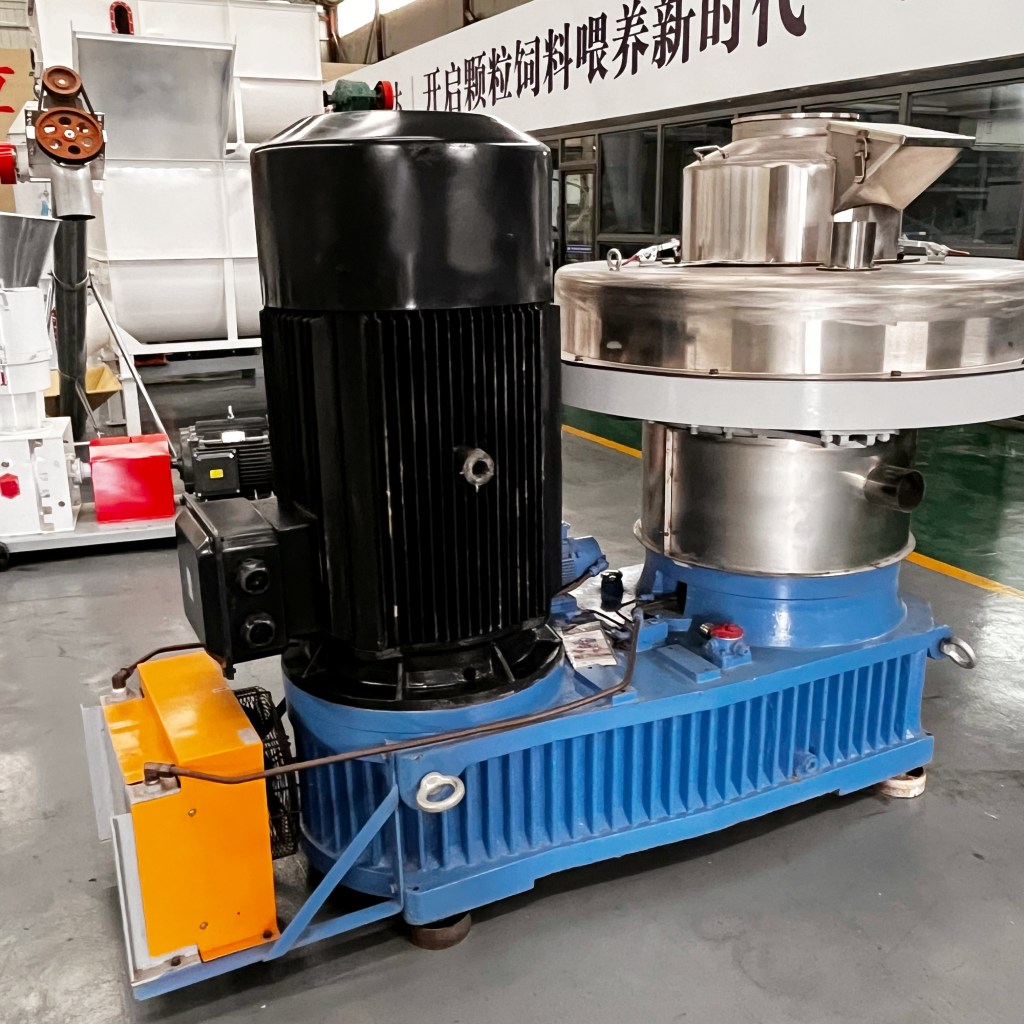

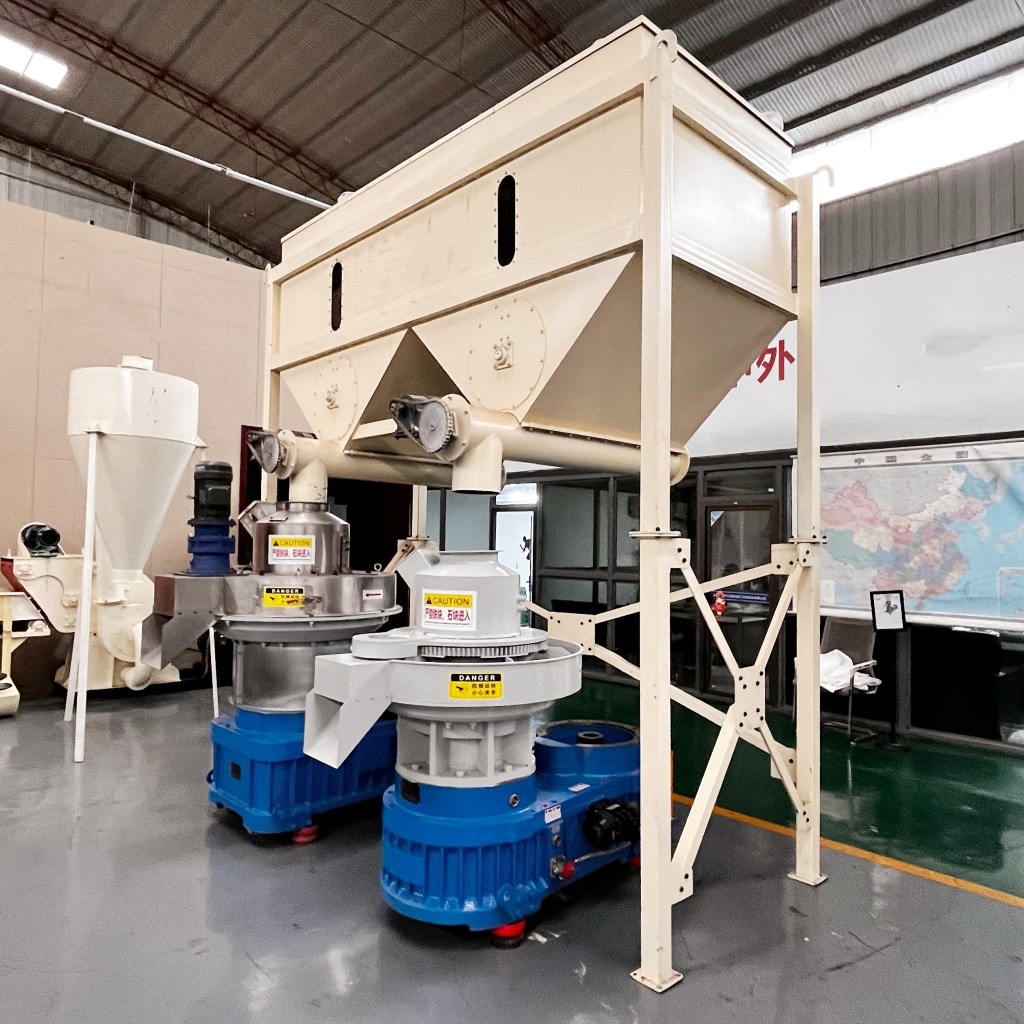

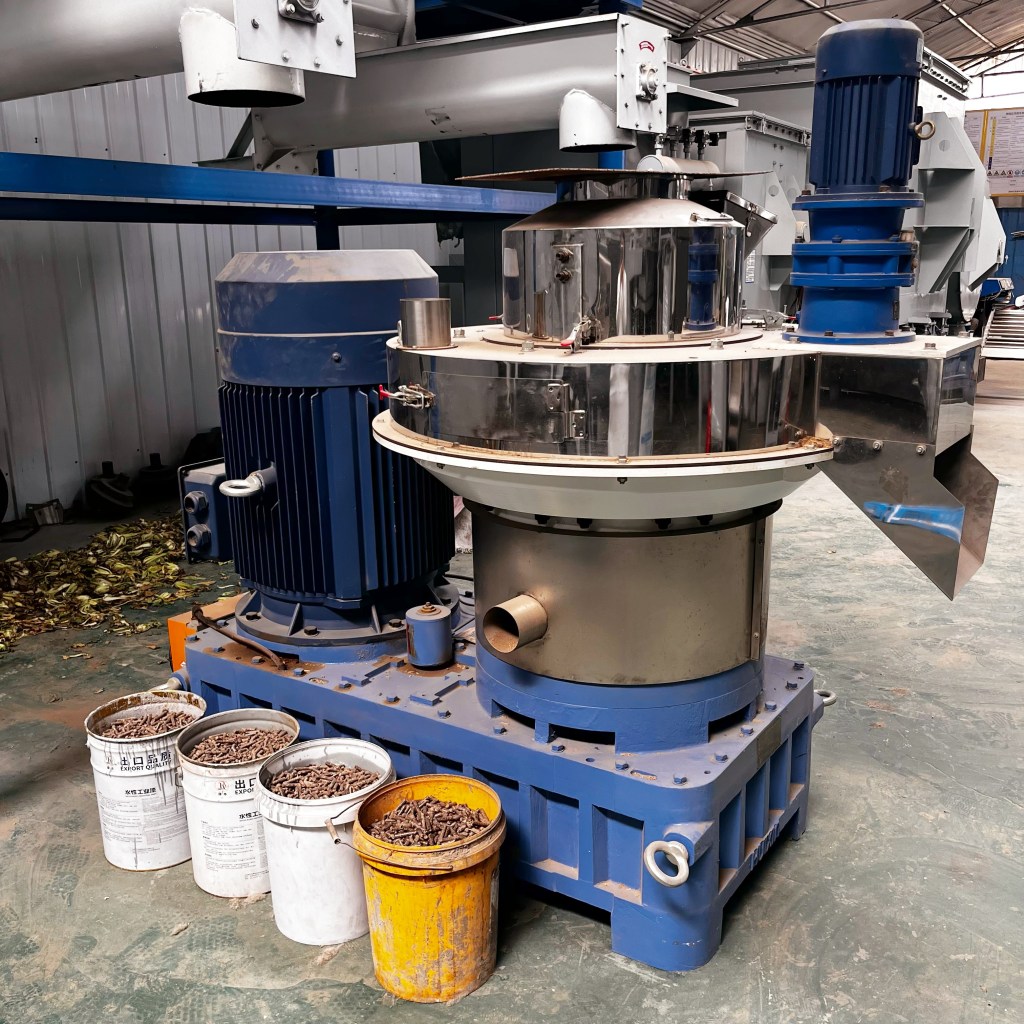

The bestsun new generation vertical wood pellet machine(also wood pellet mill) is the latest generation wood pellet machine in China. The wood pellet machine adopts a large modulus hard toothed helical gearbox, strengthened spindle, strong power output, equipment stable operation, low failure rate, low production cost. Wood pellet machine suitable for: eucalyptus, pine, birch, poplar, fruit, crop straw, bamboo chips, rice husk, waste wood plate, etc. The finished pellets is biomass energy as biofuel, which can replace coal, oil, gas, etc., widely used in power plant, boiler, and heating system.

Advantages of Bestsun wood pellet machine:

1. The mold is placed flat, and the feeding method is vertical direct feeding, which avoids material blockage, has a wide range of material adaptability and strong heat dissipation.

2. Core components: The mold is made of wear-resistant stainless steel, vacuum furnace carburizing heat treatment, uniform heat treatment hardness, and strong wear resistance. The mold is vertical double-layer, which improves utilization, reduces costs, and has the highest cost performance.

3. The motor and gearbox are connected through a plum blossom coupling, which is easier to disassemble and maintain. The gearbox has three-stage reduction and strong load-bearing capacity. The unique separation design of the main shaft ensures the concentricity of the equipment and reduces the failure rate of the equipment.

4. The machine has its own lubrication and cooling system, no need to stop, and the whole machine can achieve 24-hour fully automatic intermittent lubrication, extending the life of the equipment’s wearing parts.

5. The unique external design of the rotary device of the material feeding system means that the slewing bearing is no longer corroded by the high-temperature steam in the machine’s discharge cover, which greatly extends the service life of the rotary device of the material feeding system.

Raw Material for Wood Pellet Mill

What can wood pellets do ?

Specification of Wood Pellet Machine

Model	YGKJ-470	YGKJ580	YGKJ700	YGKJ850
Motor/kw	75	132	160	220
Capacity(t/h)	1	1.5-2	2-3	3-4
Dimension(mm)	2100*1020*1985	2200*1300*1600	2400*1400*1800	3000*1500*2200
Weight(t)	3.8	5.8	7.8	13
